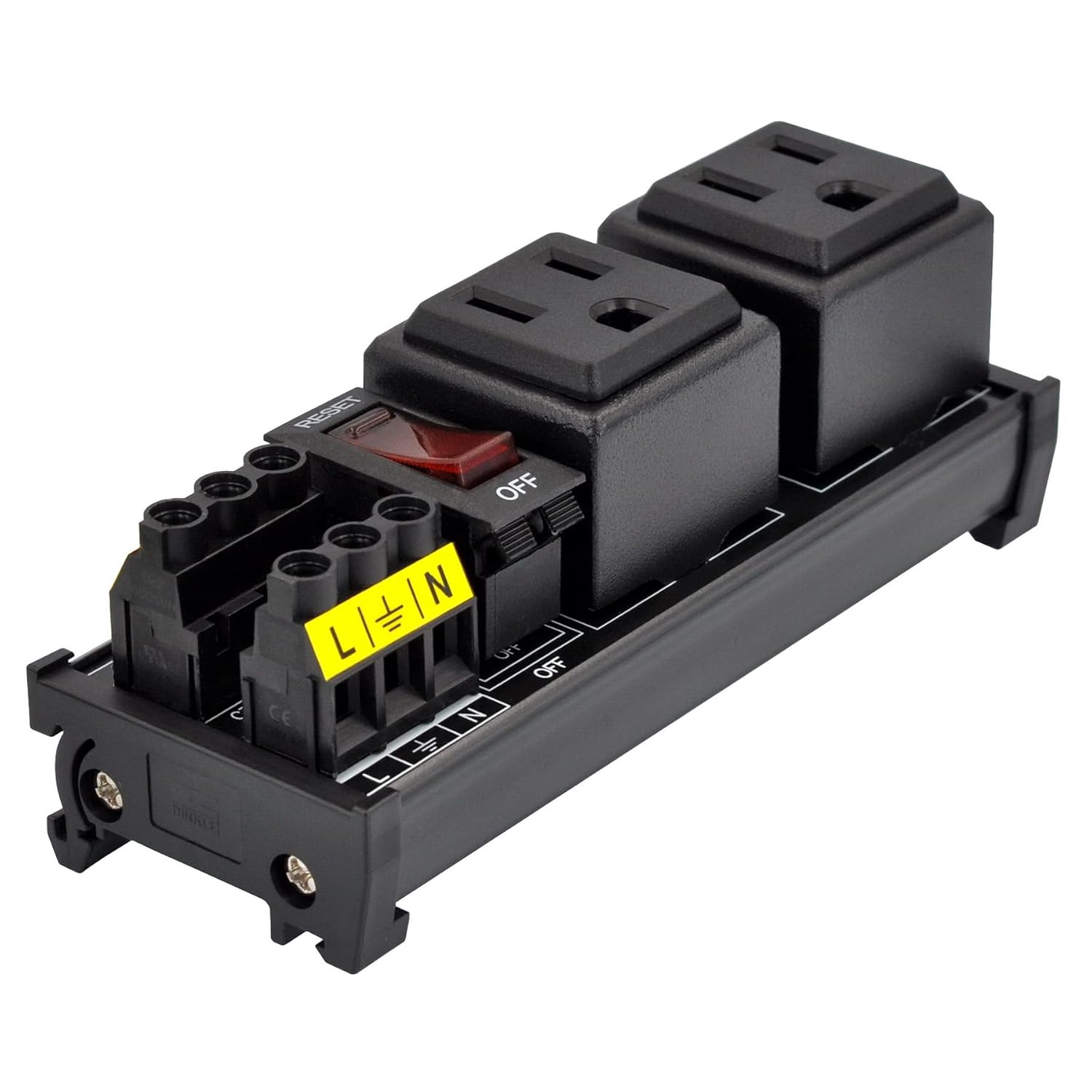

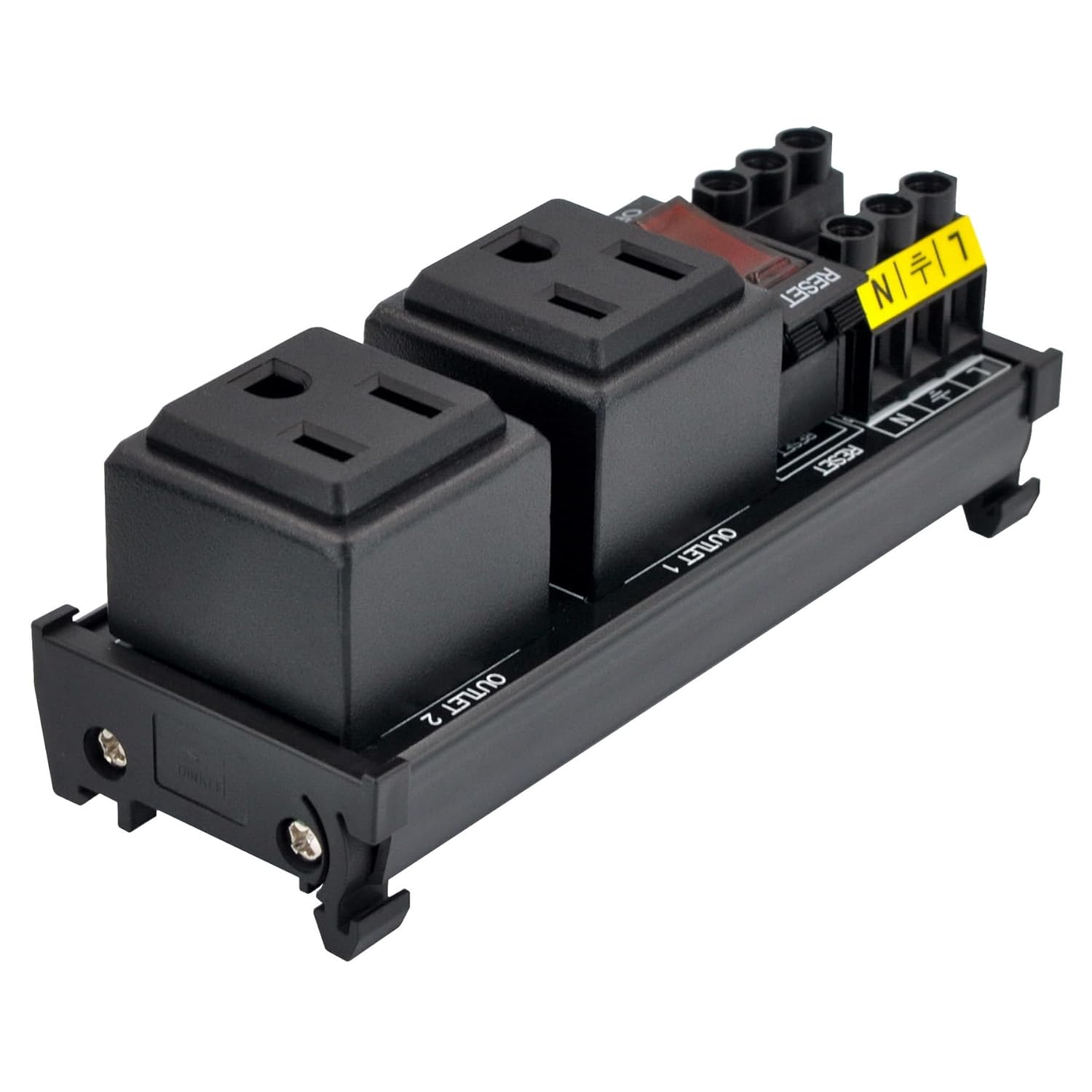

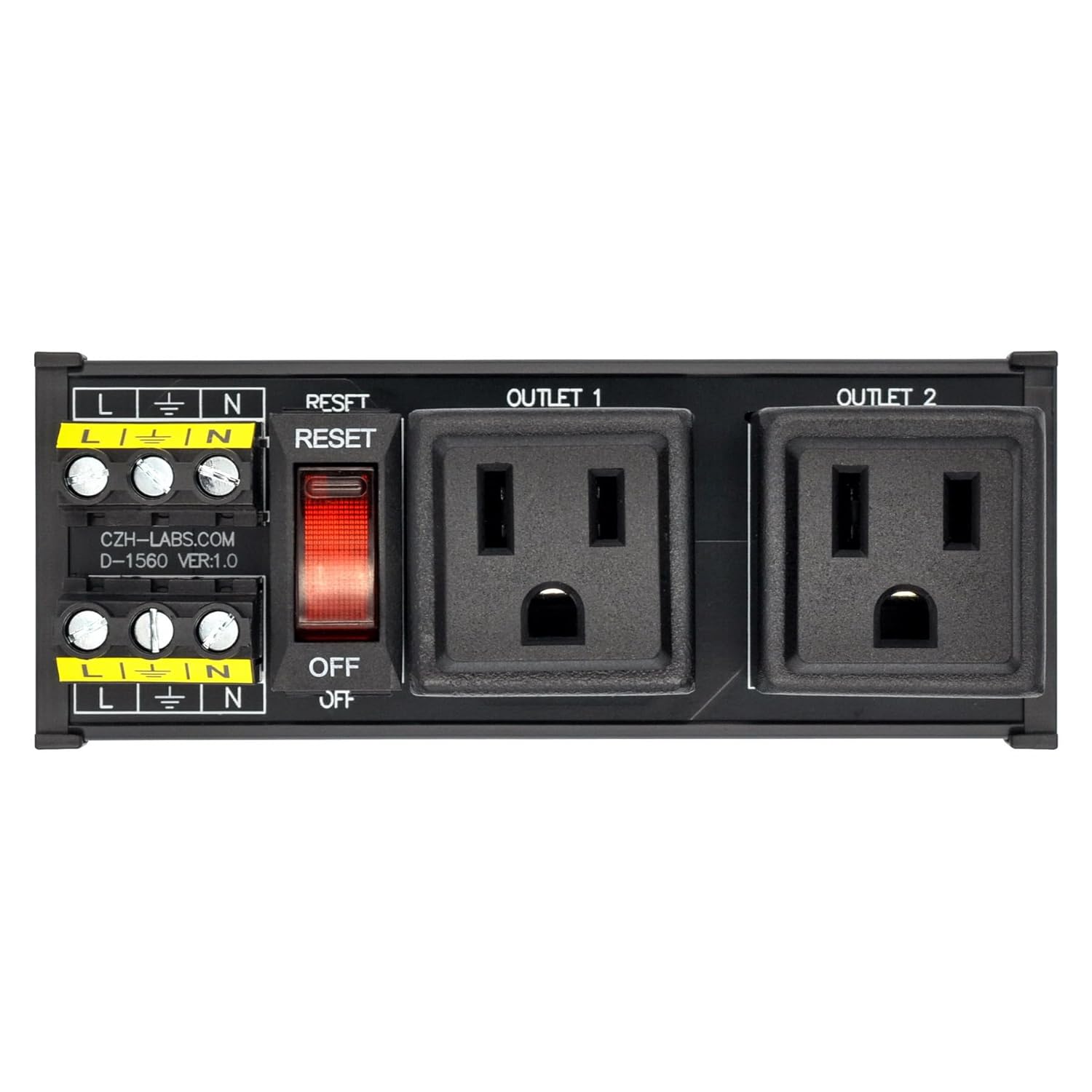

Outlet: two 3-prong grounded NEMA 5-15R AC receptacles. Reinforced AC receptacle to ensure stability.
Working voltage AC 120V. Single receptacle rated current 15 Amps. Total receptacles output rated current 15 Amps (limited by overload protector rated current).
Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

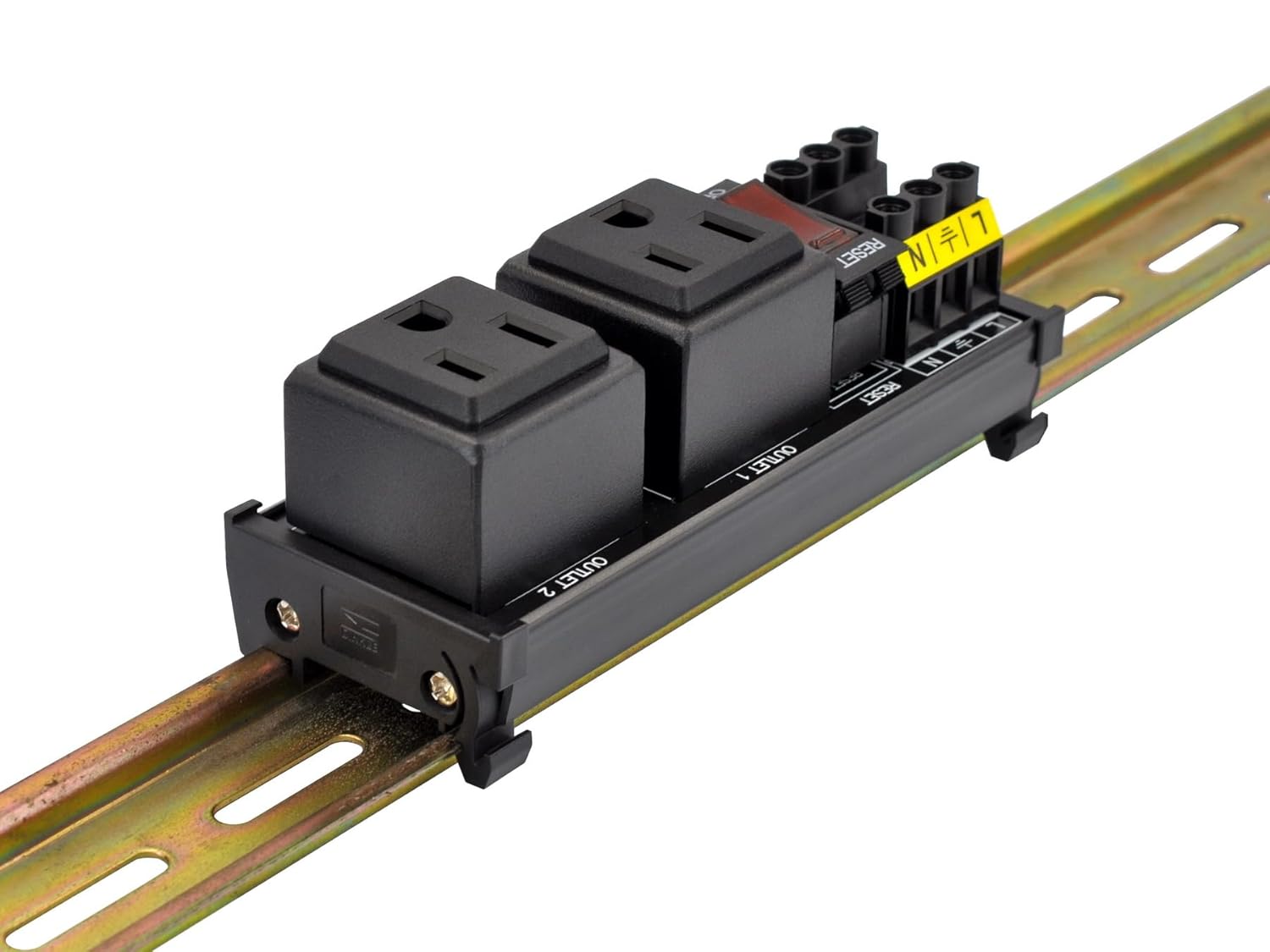

DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
